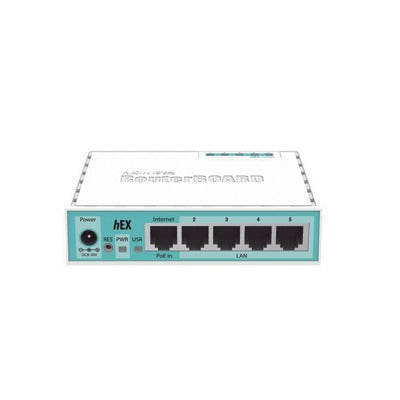

(hEX) RouterBoard, 5 Puertos Gigabit Ethernet, versiÃ³n 2

Name: (hEX) RouterBoard, 5 Puertos Gigabit Ethernet, versiÃ³n 2
Brand: MIKROTIK
SKU: RB750GR2
Price: 2145.43 MXN
Availability: InStock

El hEX es un pequeño router Gigabit Ethernet de cinco puertos, en una caja de plástico agradable para gestionar la red cableada SOHO.

La unidad está equipada con una potente CPU de 720 MHz, 64 MB de RAM, cinco puertos Gigabit Ethernet y una licencia RouterOS L4. El dispositivo es compatible con el voltaje de entrada 6-30V de entrada y PoE pasivo.

Especificaciones

Details
Product code	RB750Gr3
Architecture	MMIPS
CPU	MT7621A
CPU core count	2
CPU nominal frequency	880 MHz
CPU Threads count	4
Dimensions	113x89x28mm
License level	4
Operating System	RouterOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-30 + 70 C

Powering

Details
Max Power consumption	5W
Number of DC inputs	2 (DC jack, PoE-IN)
PoE in	Passive PoE
DC jack input Voltage	8-30 V
PoE in input Voltage	8-30 V

Ethernet

Details
10/100/1000 Ethernet ports	5

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Ethernet test results

RB750Gr3		MT7621A (880Mhz) 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	162.4	1,972.2	443.7	1,817.4	1039.1	532.0
Bridging	25 bridge filter rules	162.4	1,972.2	168.1	688.5	174.3	89.2
Routing	none (fast path)	162.4	1,972.2	444.4	1,820.3	1035.0	529.9
Routing	25 simple queues	162.4	1,972.2	179.6	735.6	171.4	87.8
Routing	25 ip filter rules	92.9	1,128.2	94.1	385.4	93.8	48.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
